AS AL 75

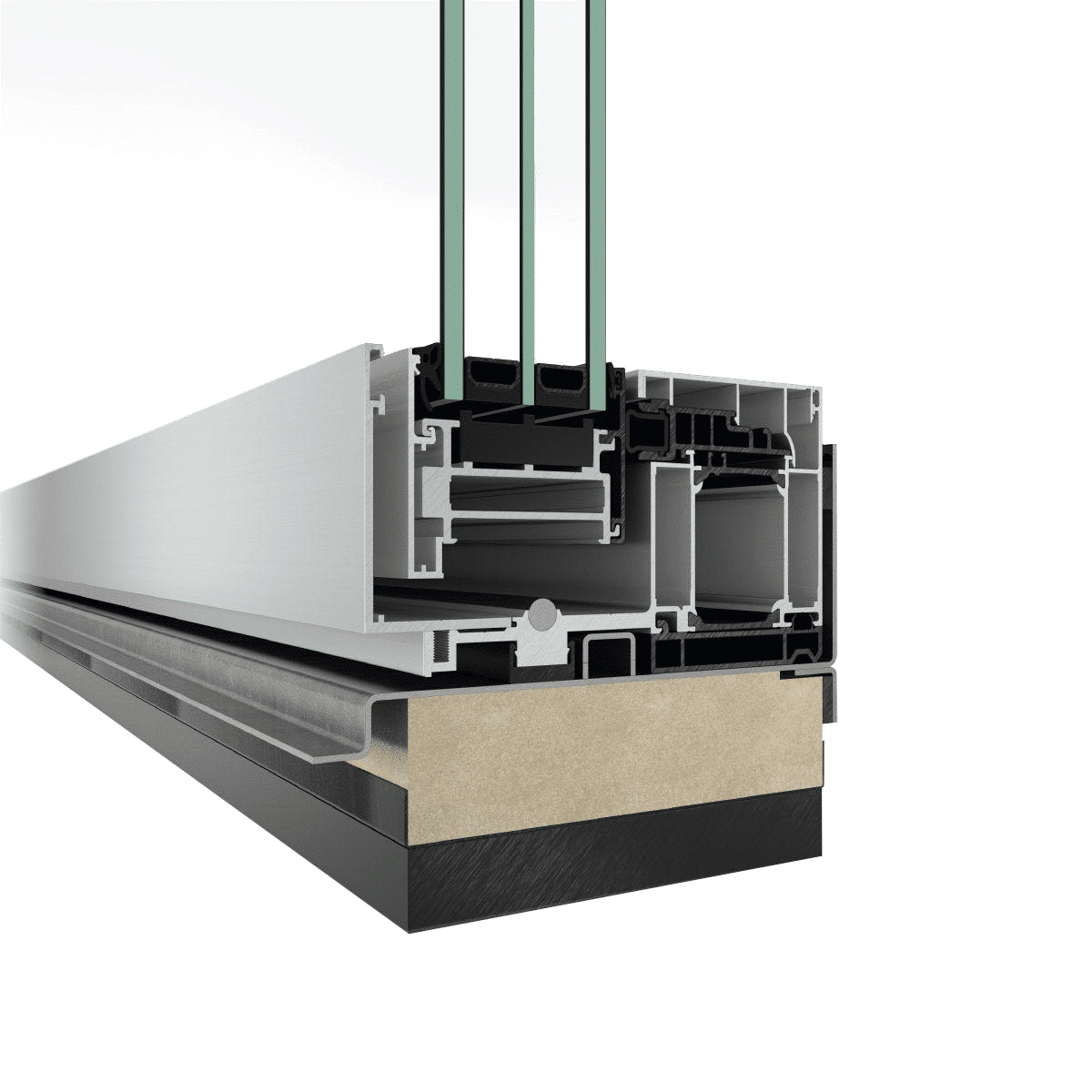

Through its partnership with air-lux, Schüco is taking a new approach with the gaskets in its AS AL 75 Panorama Design sliding system. The patented, inflatable gasket concept guarantees 100% impermeability for the sliding system, while ensuring that it remains easy to operate. This also applies to large sliding units and severe weather conditions. Once the gasket is activated and inflated, it presses against the sliding profile and closes the gap between the sliding unit and the fixed frame so that it is completely weathertight. When open (gasket inactive), the gasket is rolled in and the sliding vent can be moved with minimum effort. In contrast to systems with brush gaskets, there is therefore no compromise on weathertightness or ease of operation.

Key Features

Weathertight

100% weathertightness thanks to active pneumatic seal

Gasket System

Gasket system with membrane function

Accommodating

Accommodation of building settlement

Thermal Efficiency

0.83 W/(m²·K)

Triple Glazed

N/A

Sound Reduction

44 dB

Security

Up to RC3

Construction Depth

173 mm
