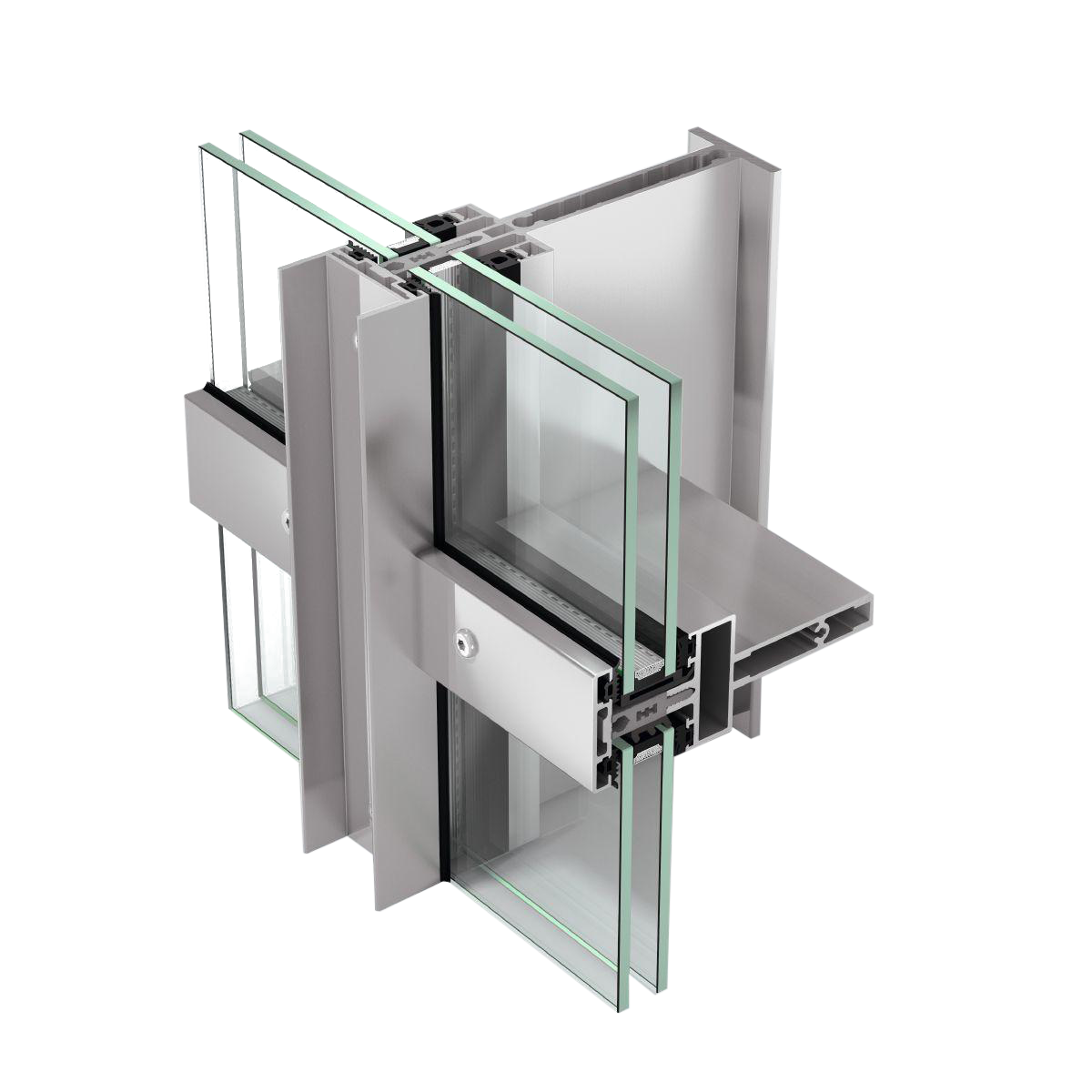

FWS 50 SI

Based on pioneering isolator technology, the Schüco FWS 50.SI (Super Insulated) façade system offers highly thermally insulated solutions for designing diverse façades and skylights to passive house level, including optimised fabrication and installation processes. With its high flexibility and broad system range, the system ensures mullion/transom constructions for the most varied functional and design requirements in high-end residential and commercial projects. A transparent system solution integrated in the profile for spandrel safety barriers blends in seamlessly and elegantly into the external façade appearance. The required safety barrier loading for floor-to-ceiling opening units and low spandrel heights can be implemented with consistent profile face widths and a continuous profile.

Key Features

Customizable

High level of design freedom in the system range through the structural glazing design as a flush-fitted, all-glass facade or the semi-structural glazing facade

Easy-to-Install

Prefabricated system components: increased fabrication convenience, minimal sources of error and increased installation speed

Insulated

Available as thermally insulated and highly thermally insulated versions

Thermal Efficiency

N/A

Triple Glazed

N/A

Sound Reduction

48 dB

Security

Up to RC3

Construction Depth

50 TO 250 mm
